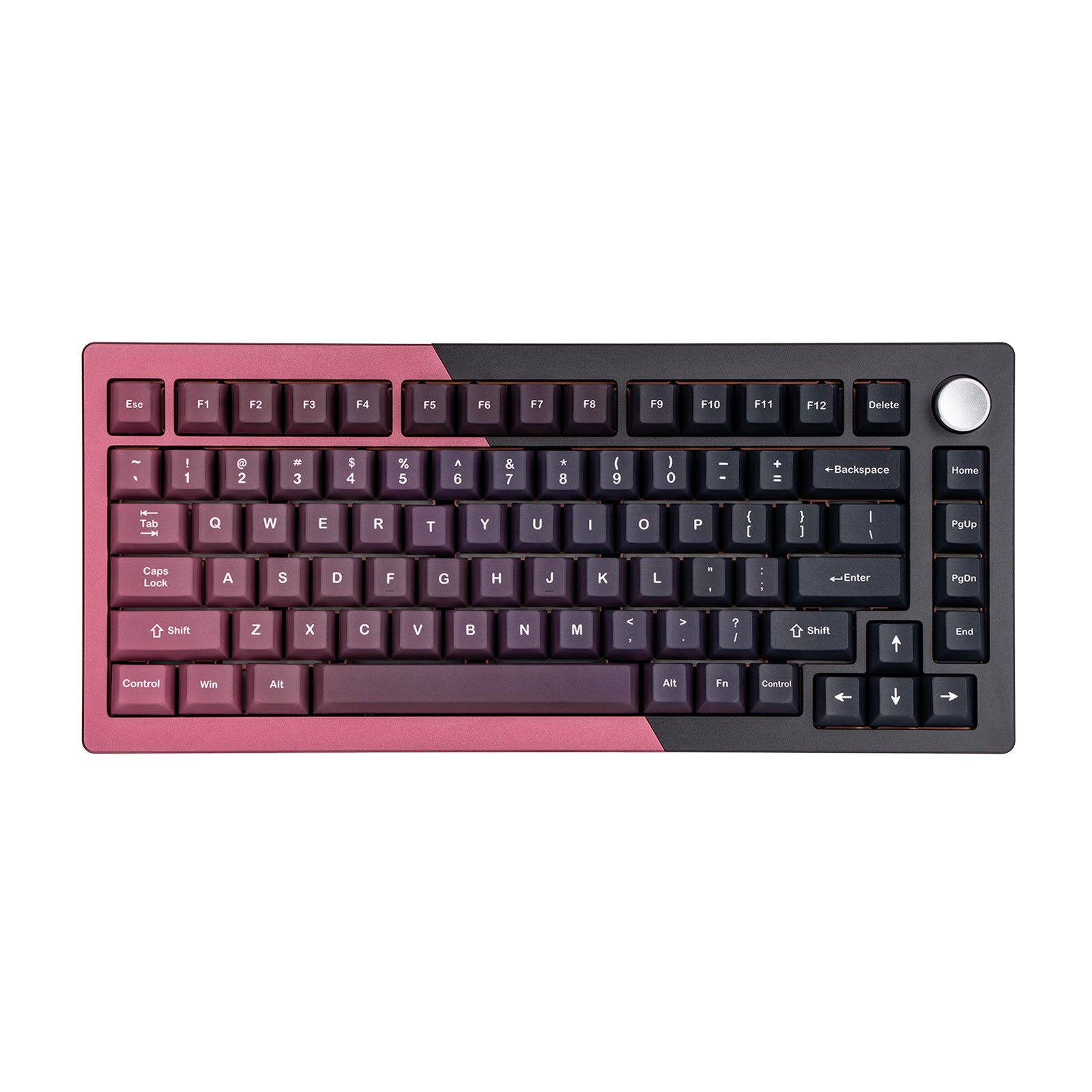

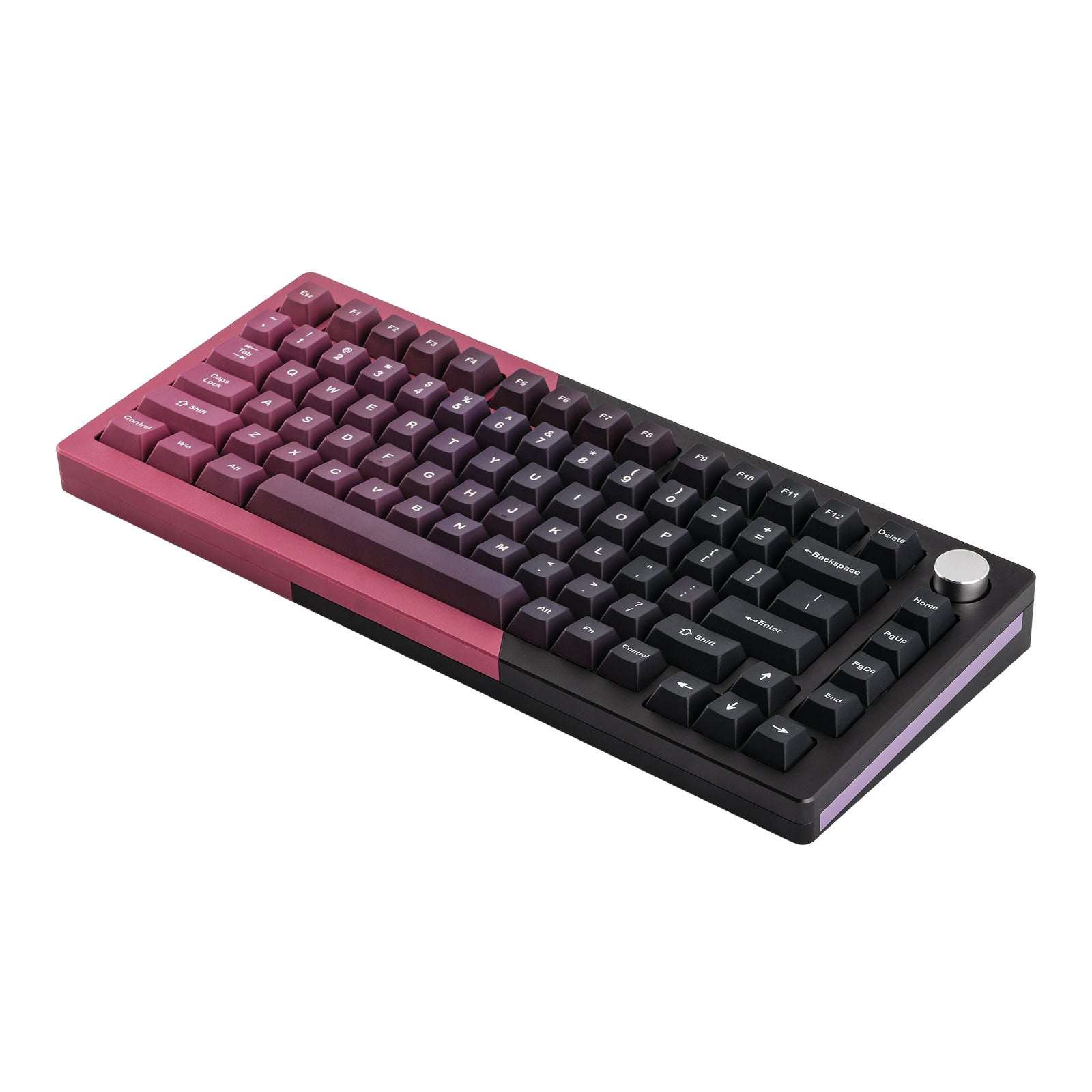

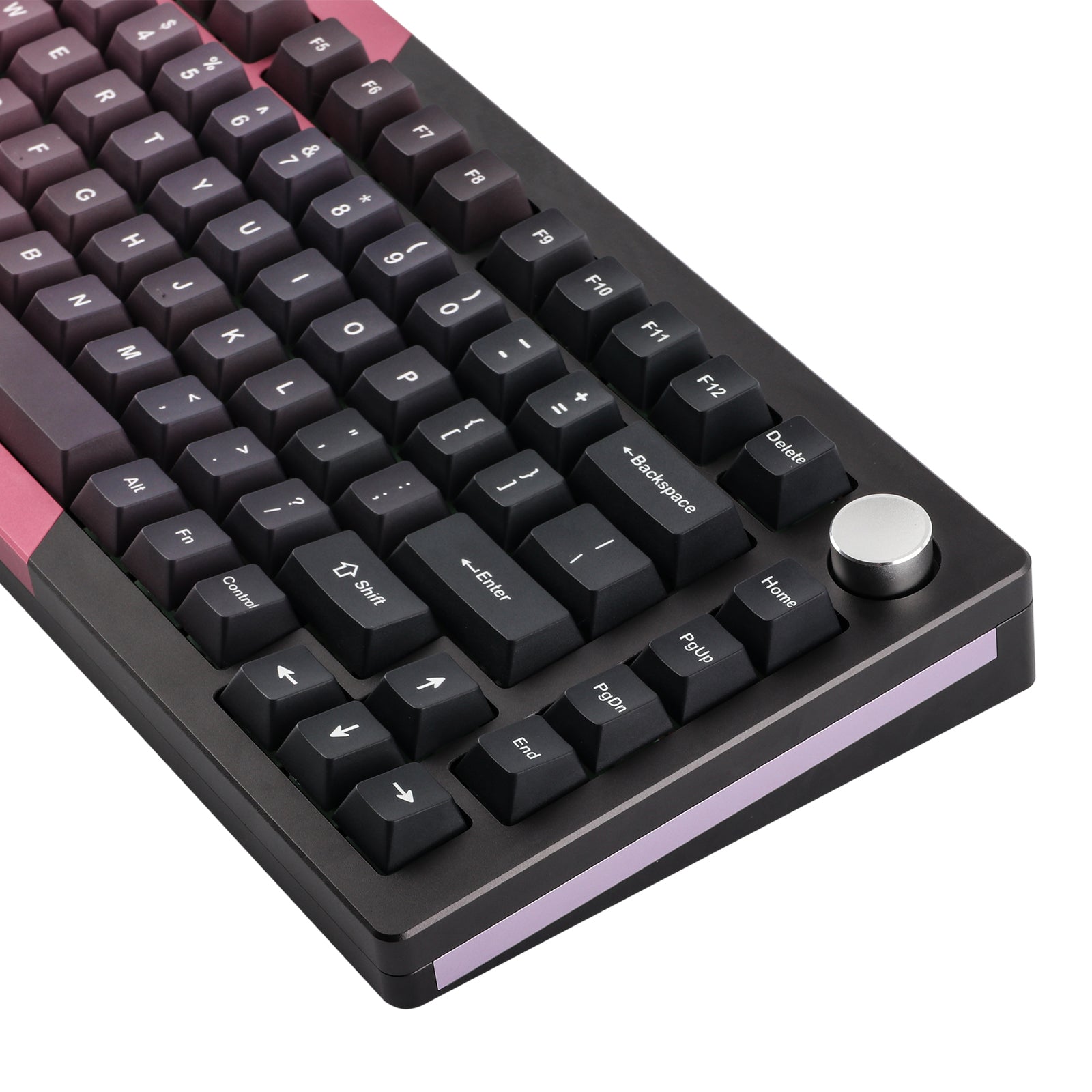

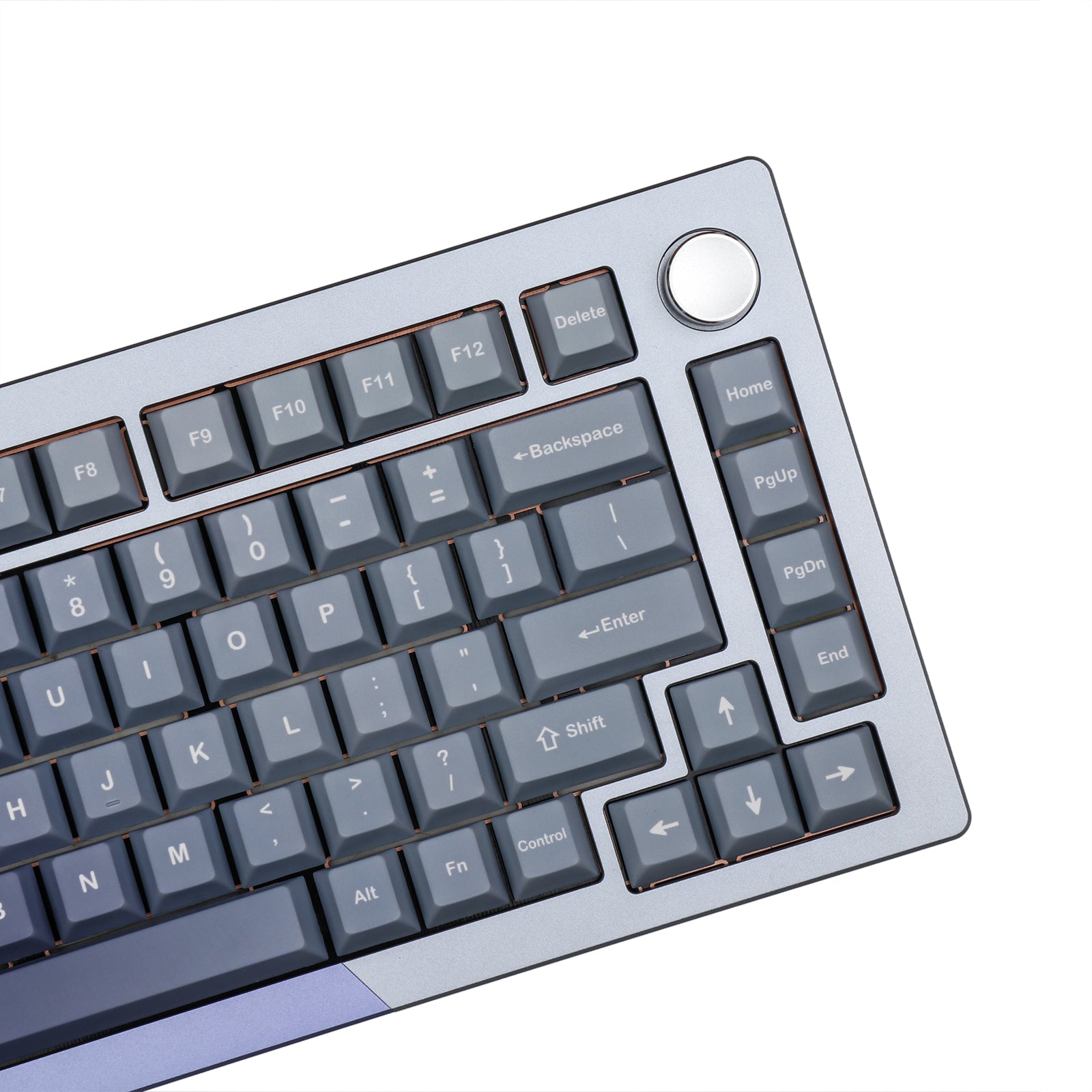

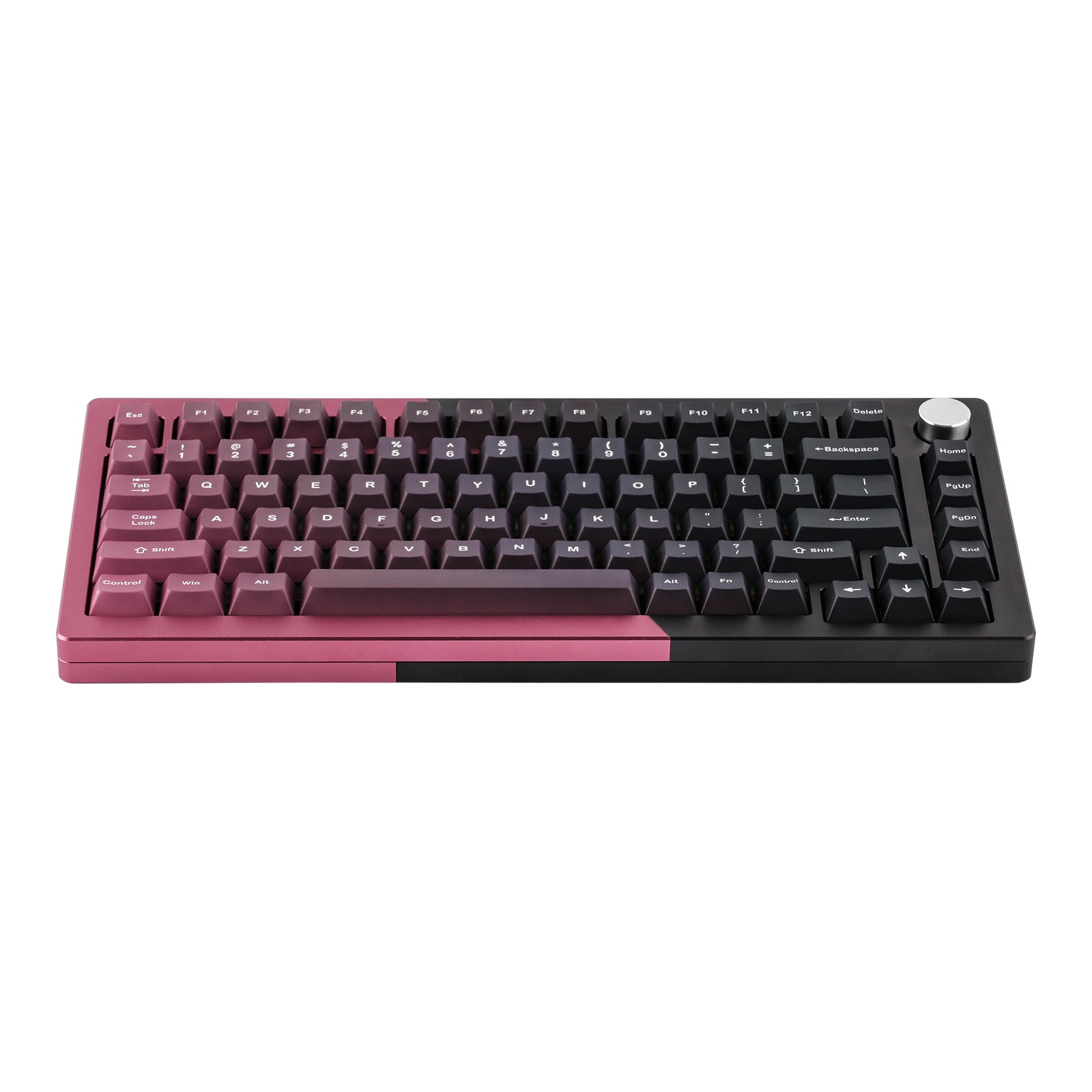

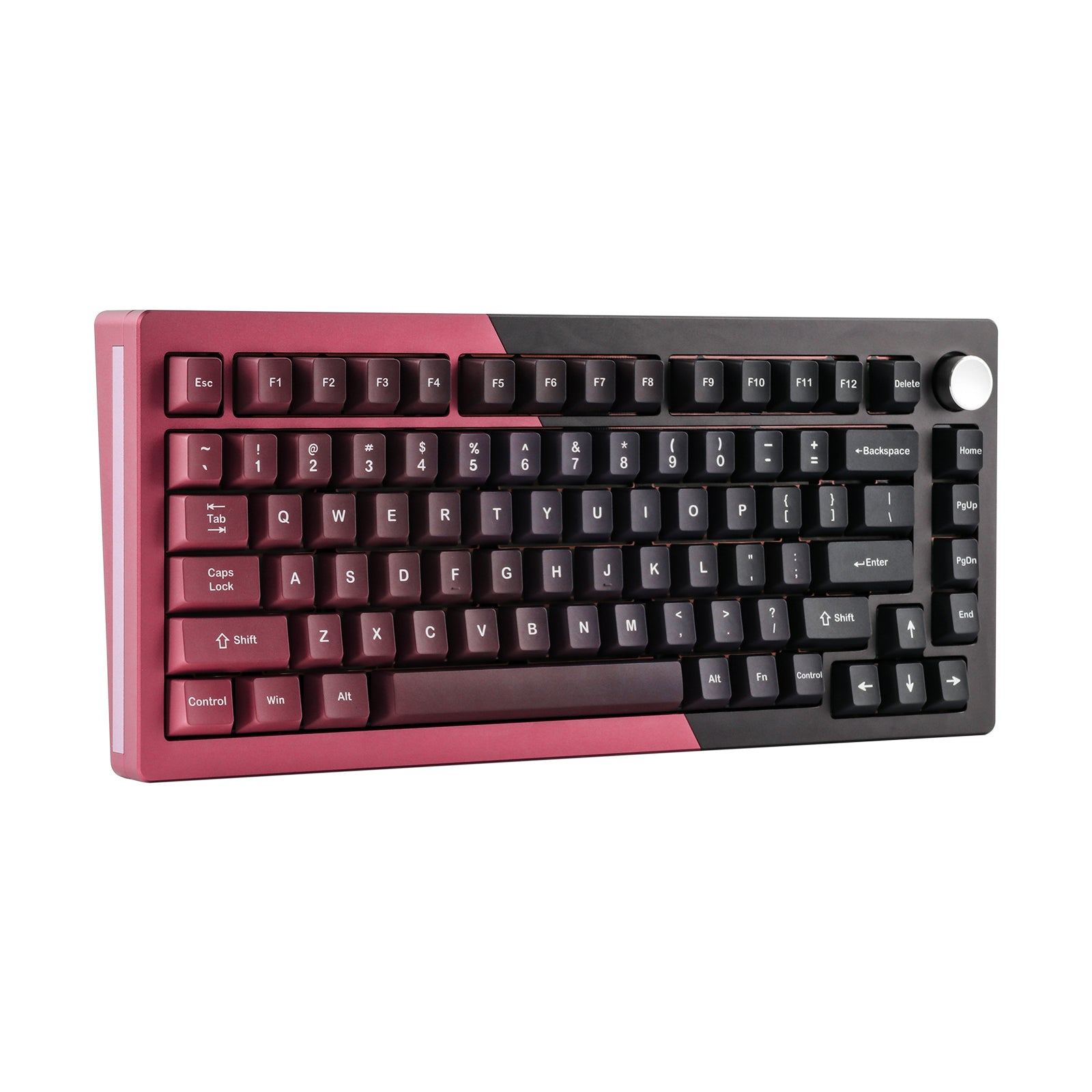

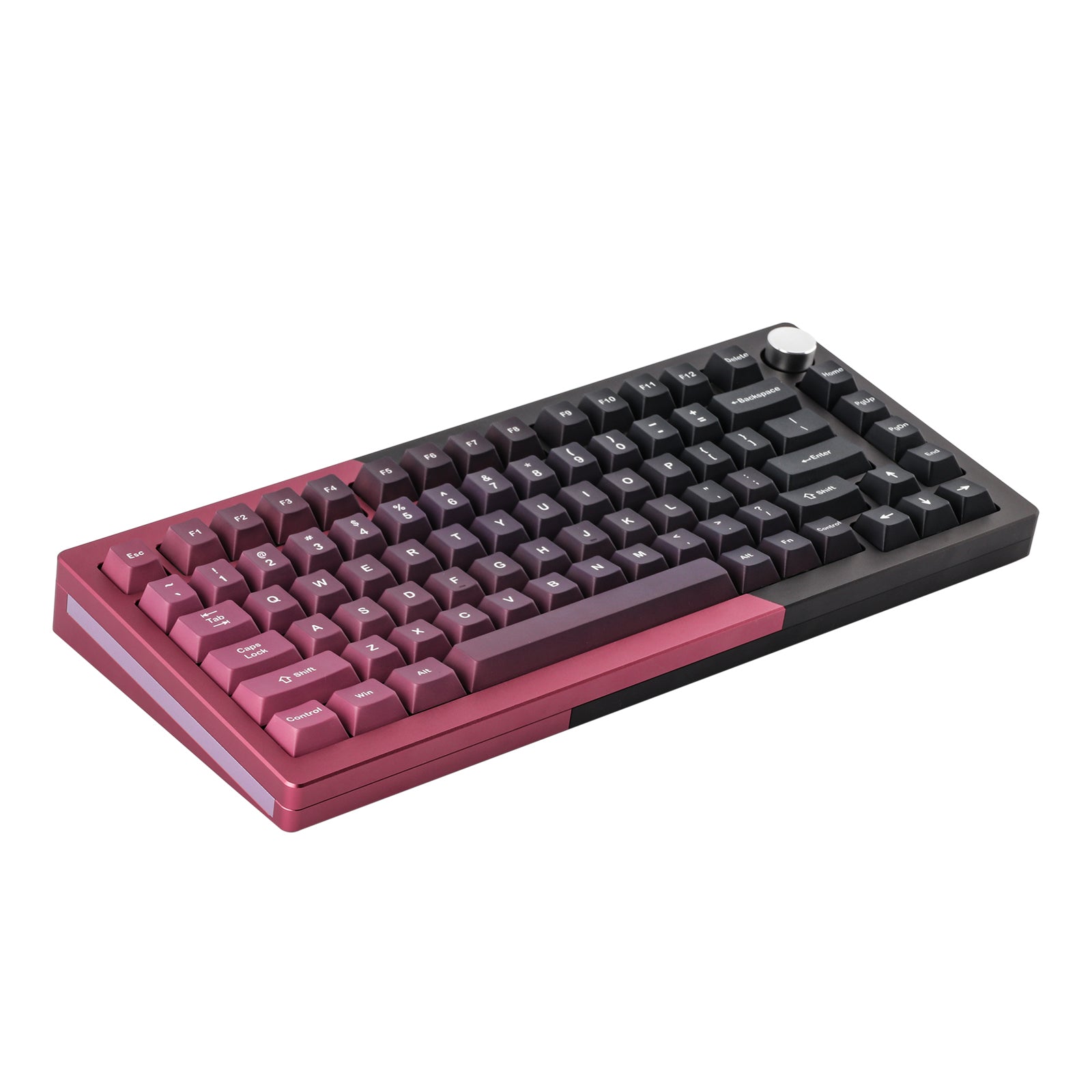

KiiBOOM LOOP75

75% QMK/VIA Hotswappable Full Aluminum Modular Gasket Structure Mechanical Keyboard

$169.99
Color

75% Compact

QMK/VIA

Full Aluminum Modules

Gasketed Mounted

5 Padding Layers

Flex Cut FR4 Plate

PBT Gradient Keycaps

Bluetooth, Type-C, 2.4G

Connect up to 3 devices

macOS, Windows, Android, iOS

Hotswappable

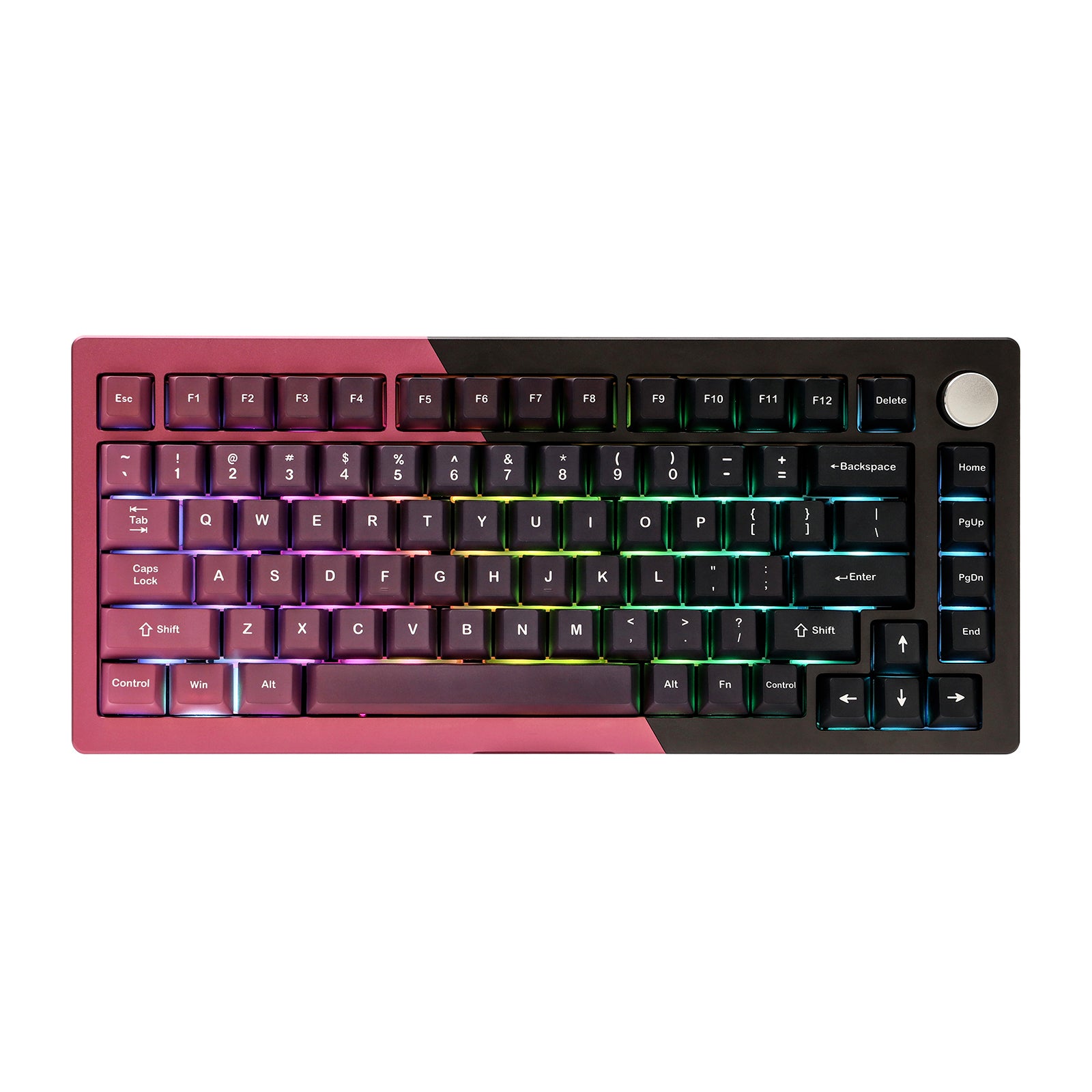

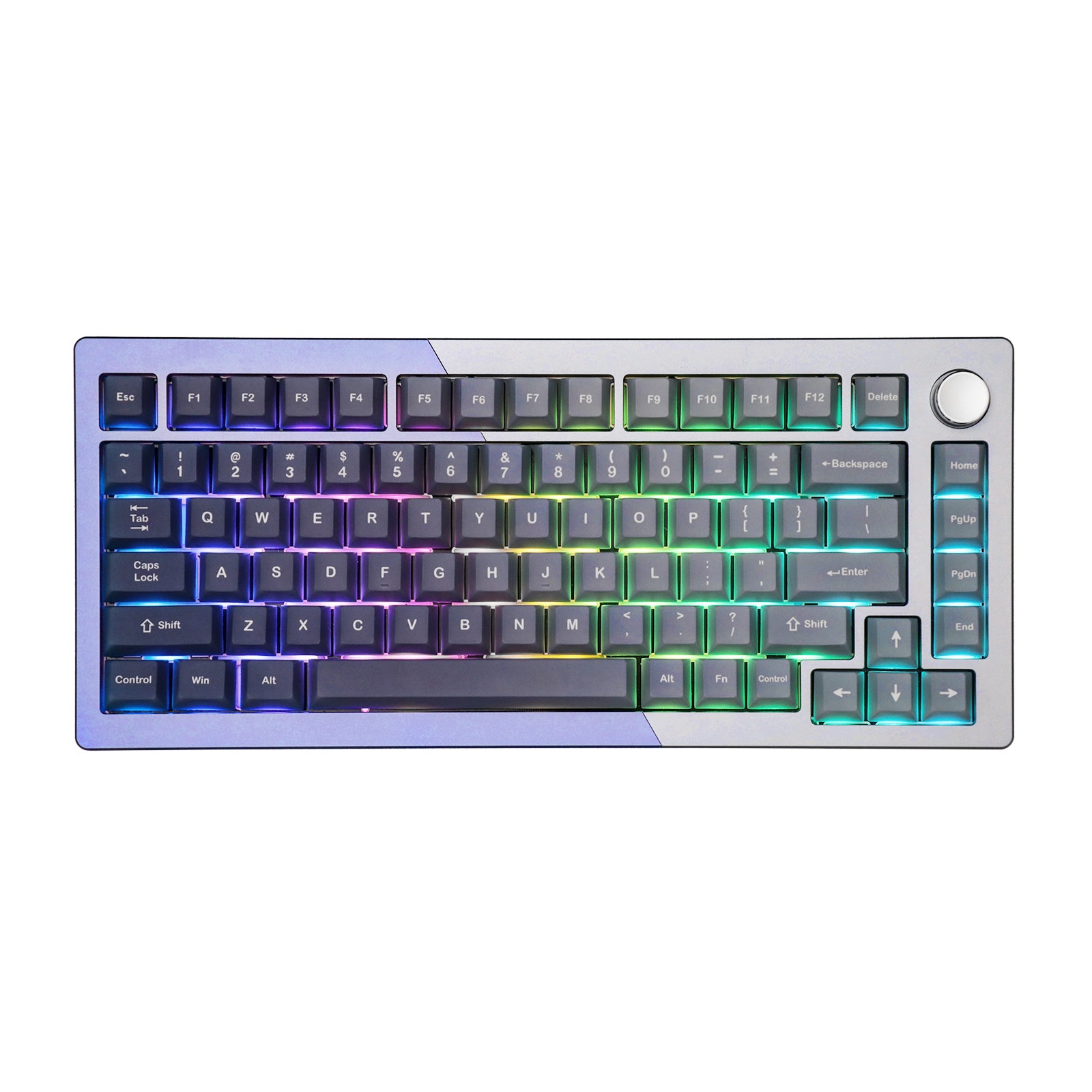

South-Facing RGB LEDs

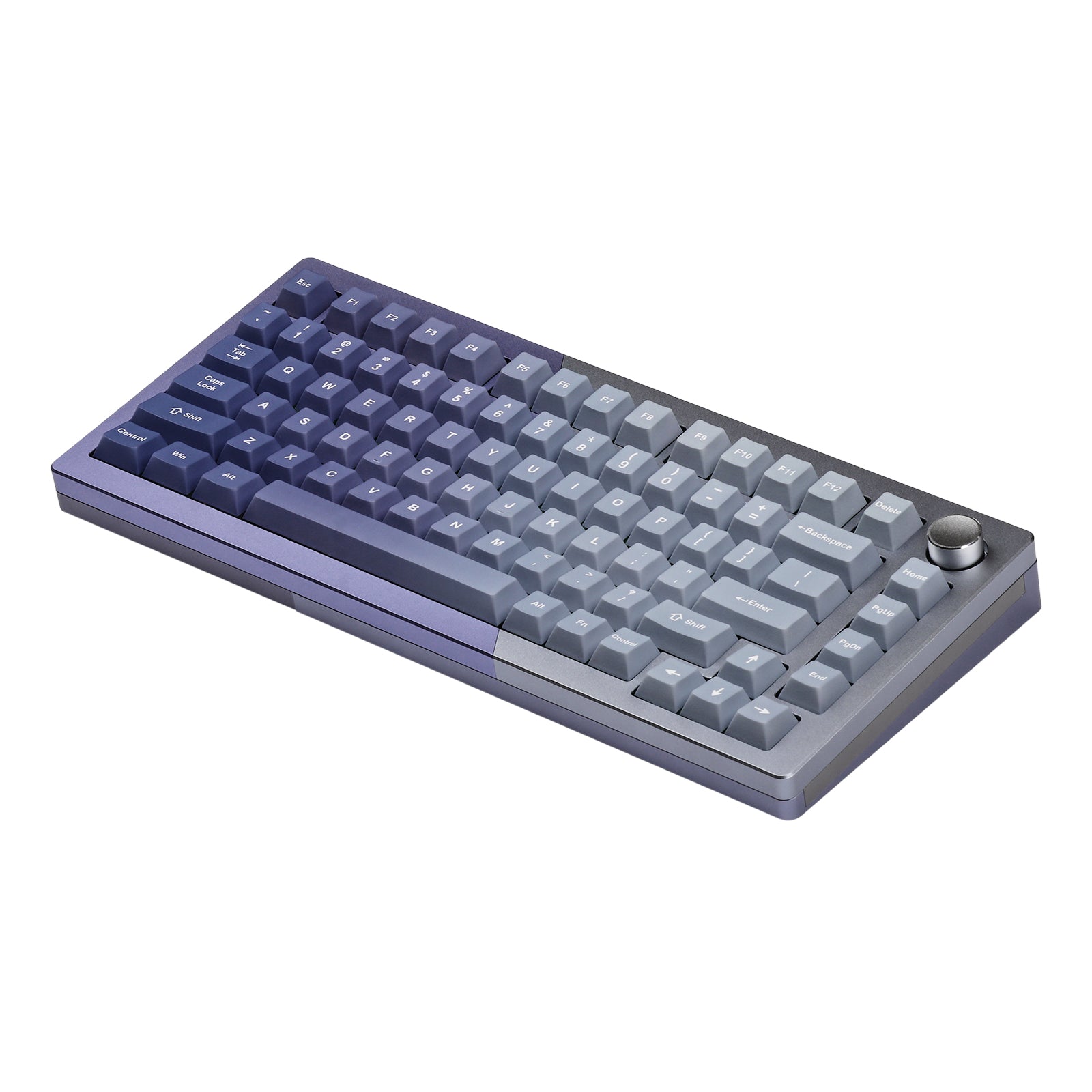

Aesthetic Gradient Design.

Introducing the KiiBOOM Loop series, featuring a unique gradient concept that combines two different colors of anodized 6063 aluminum joined together to form the case.

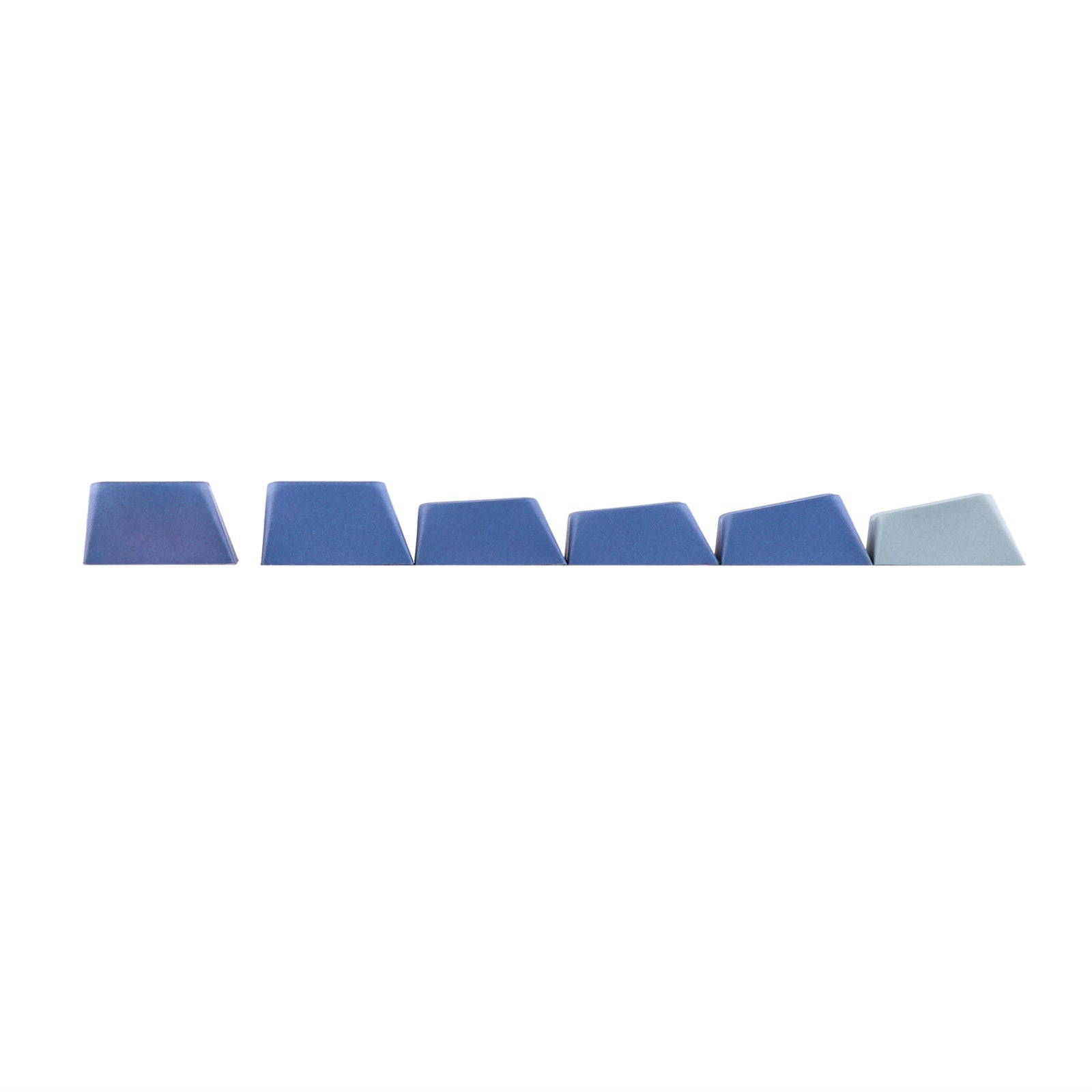

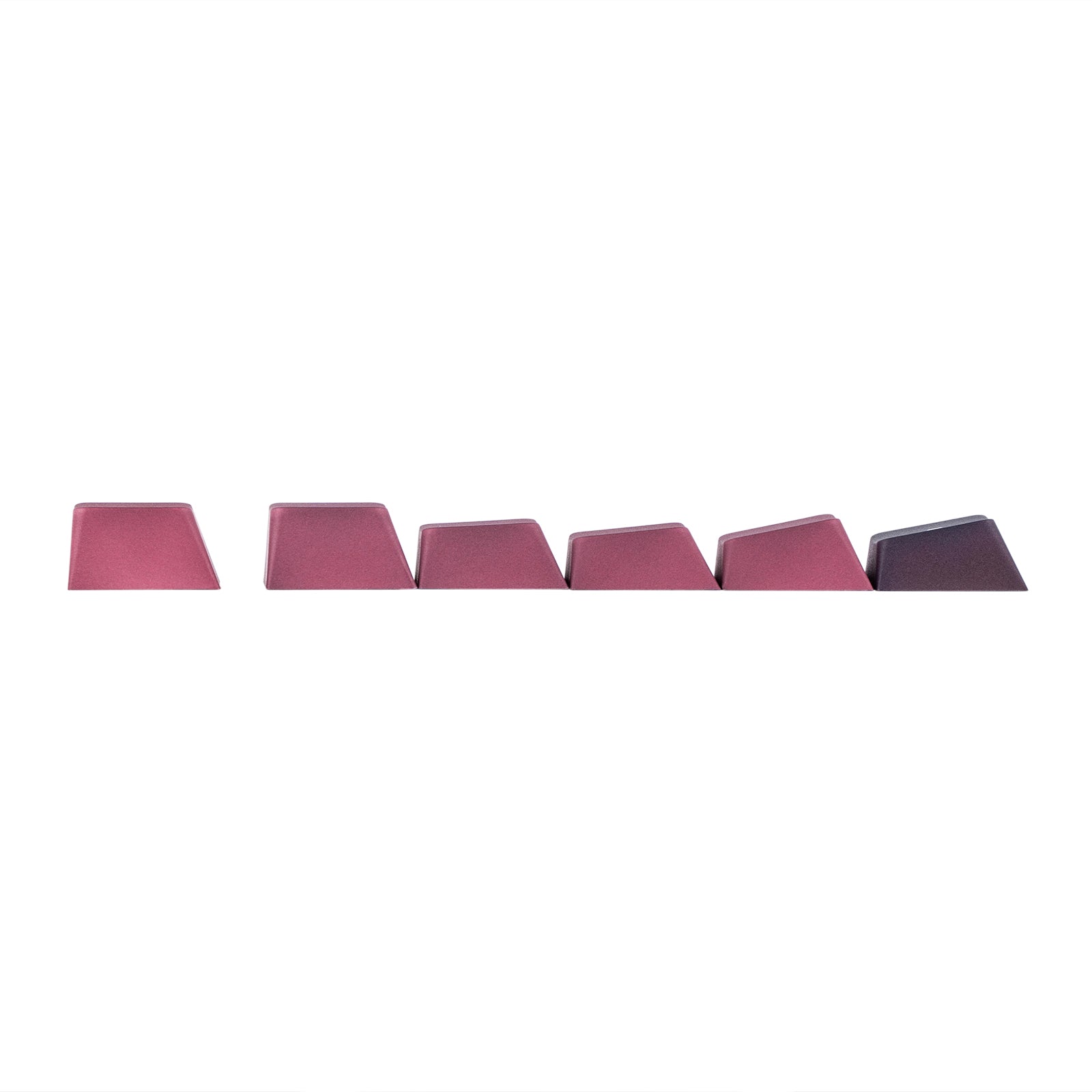

Each piece is precisely CNC machined and anodized to ensure perfect color accuracy and cutting precision. The Cherry Profile dye-sub PBT keycaps feature gradient colors, complementing the keyboard's overall aesthetic. KiiBOOM continues to experiment with bold color combinations, creating a lively and distinctive look that turns your keyboard into a refined piece of art on your desktop.

Get ready to enjoy the miracle when feature-loaded customization meets aesthetic innovation, the KiiBOOM Loop 75 is designed to revolutionize your desktop typing experience.

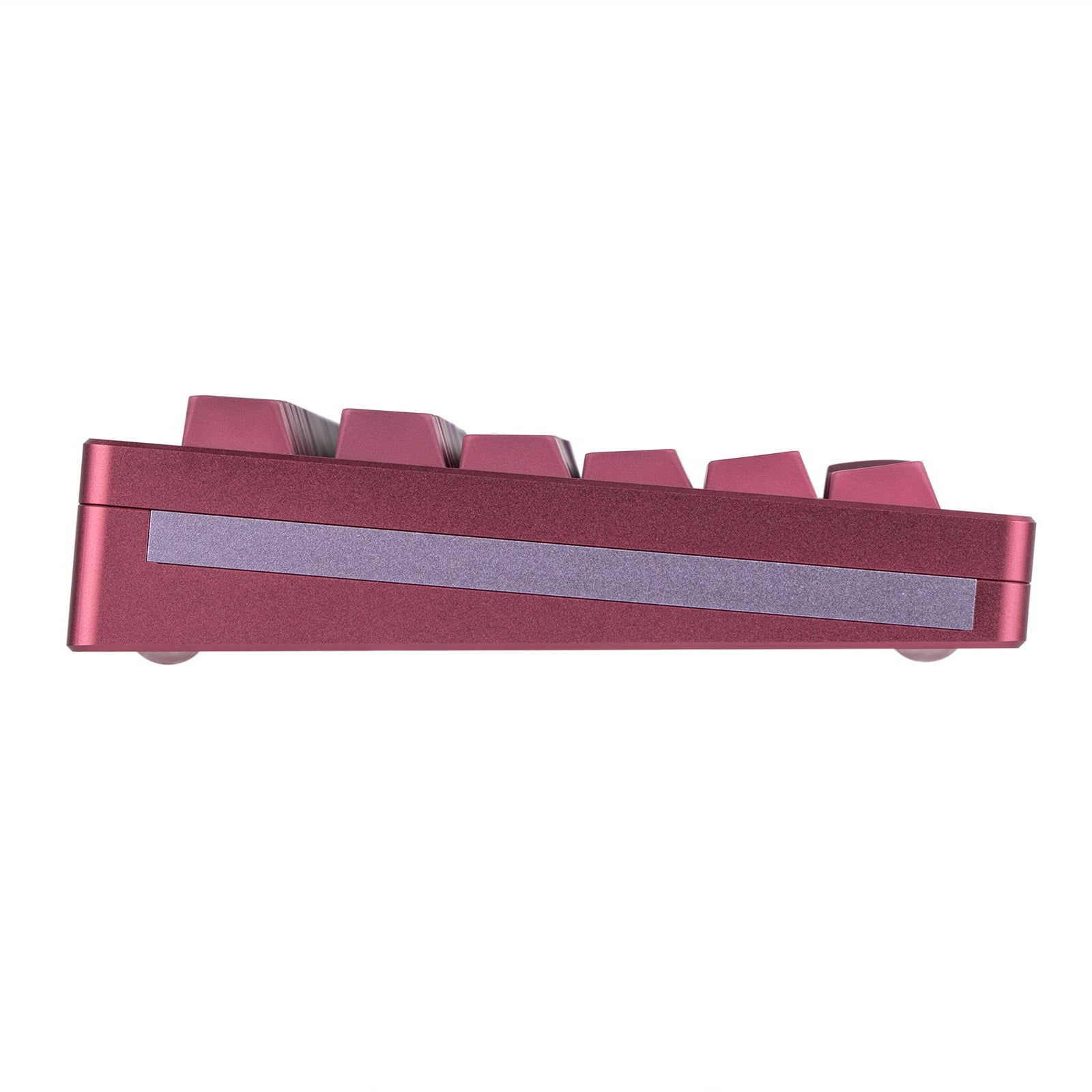

Full Aluminum Modular Structure

The essence of the design philosophy for KiiBOOM Loop 75 is innovation. Inherited from our first full metal keyboard that utilizes the mortise and tenon structure, the Loop 75 uses a similar concept by making the keyboard several constructible metal brick pieces, while combining the trendy gasket structure for a solid quality base yet soft-bouncing tactile typing experience.

Coming with the PORON sandwich foam, IXPE switch padding, PET noise cancellation pad, POROM bottom foam, and PET isolation bottom pad, the Loop 75 effectively eliminates the hallow sound/ cavity noise to the greatest extent while typing. Now typing on Loop 75 is not only a tactile pleasure, but also an enjoyable auditory experience!

1
Knob Controls
2
PBT Keycaps
3
Split Modular Top Case
4
KiiBOOM 45g Matcha Latte 2.0 Switches
5
Gasket Mounts
6
Position Plate
7
Poron Pad
8
PET Pad
9
Transparent Isolation Pad
10
PCB
11
Bottom Pad
12
Side Aluminum modules
13

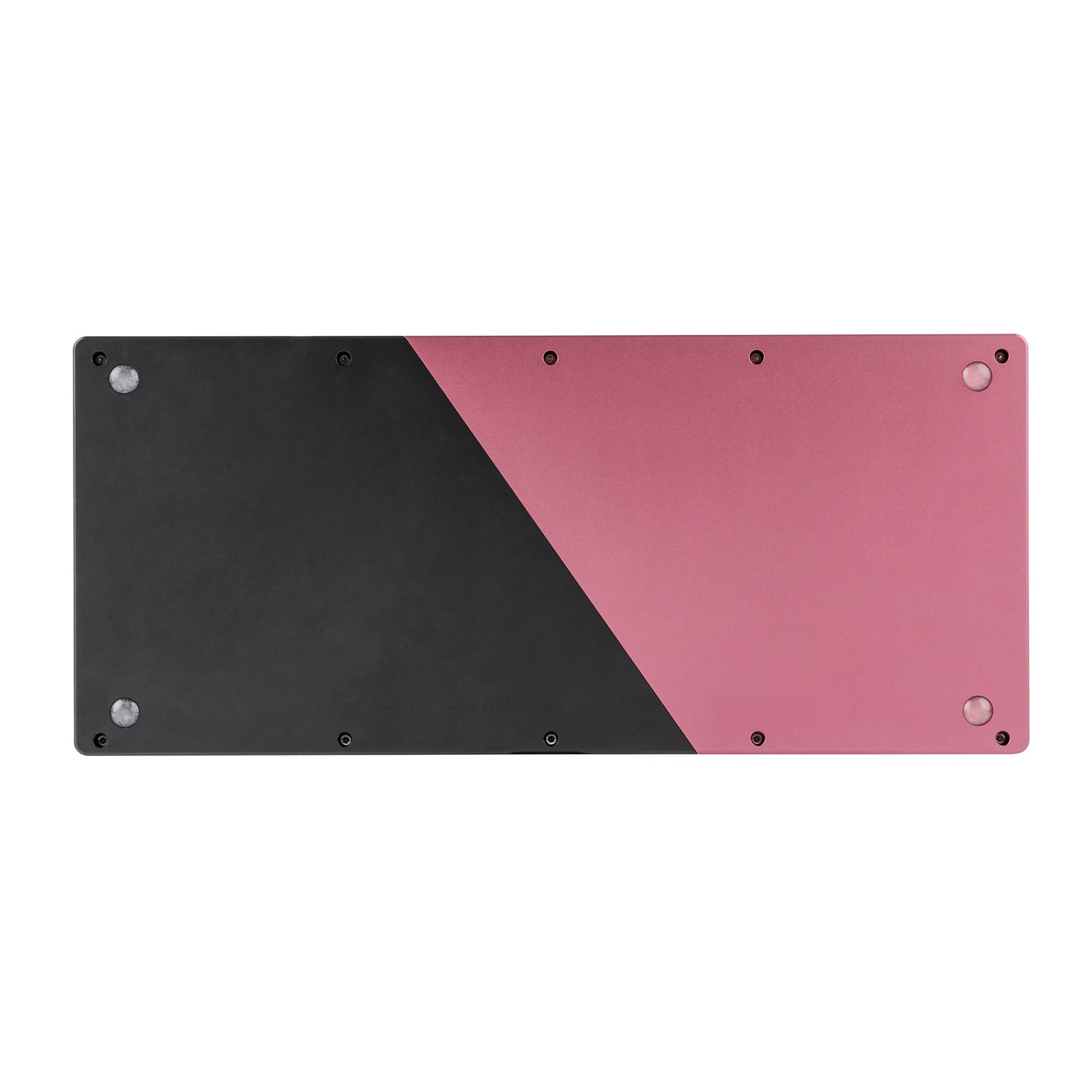

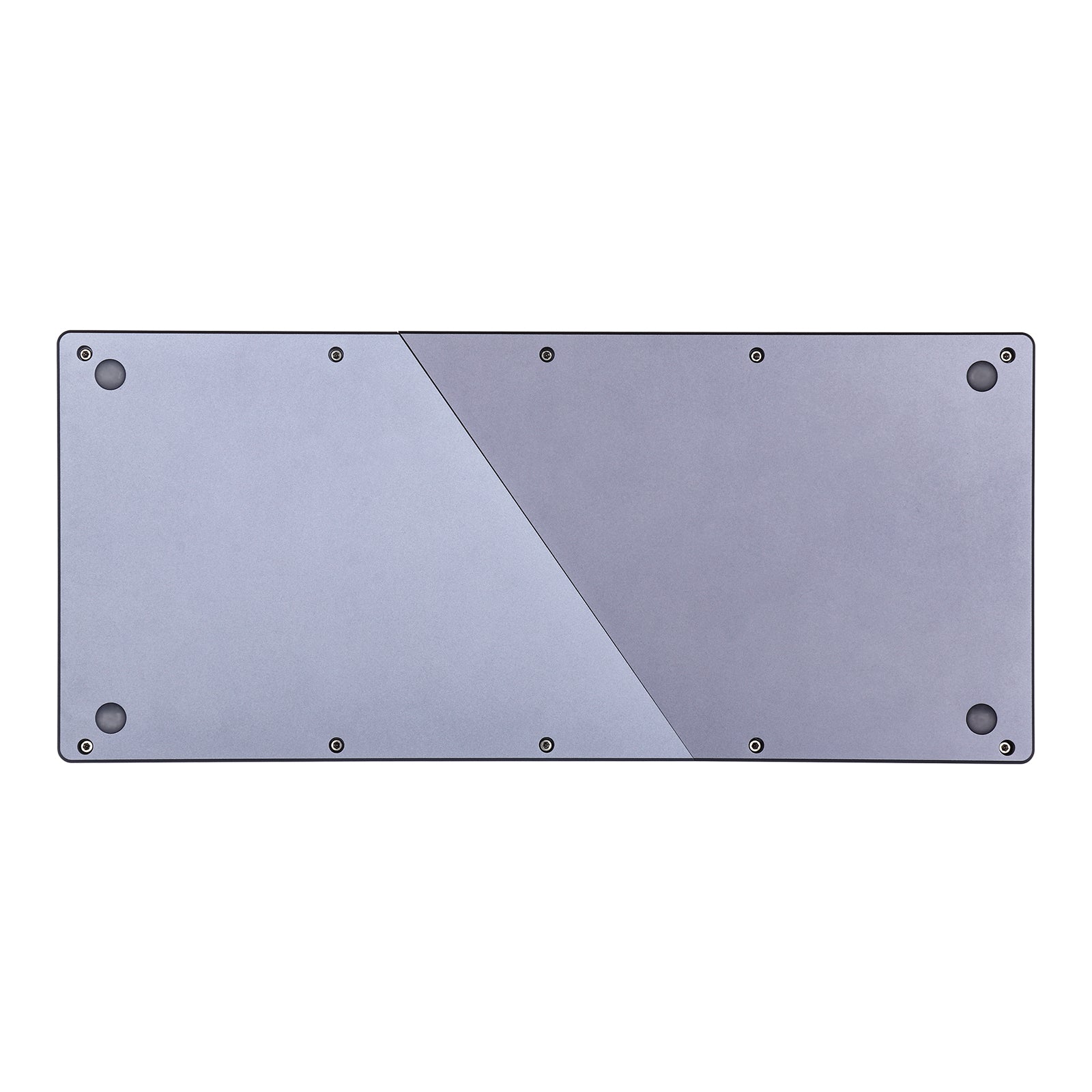

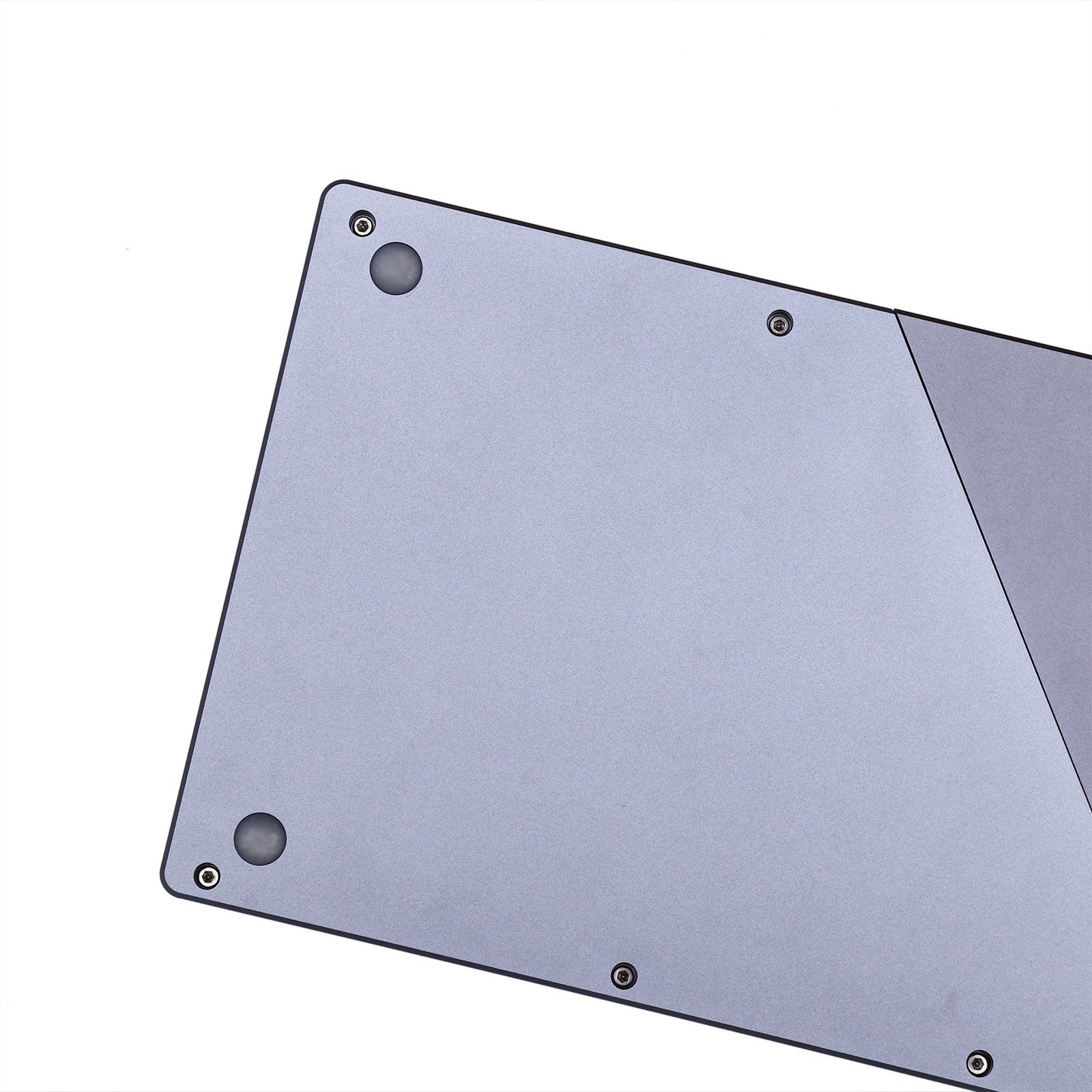

Split Modular Bottom Case

Traditional aluminum mechanical keyboard prefers to use only one color to simplify the manufacturing process and reduce costs. Additionally, multi-color metal treatments (such as anodizing, painting, etc.) require higher technical standards and additional steps, which can increase production costs and time. However, we at KiiBOOM don’t want to compromise the desktop aesthetics and high quality while designing the Loop 75. Every block piece is meticulously moduled piece by piece to ensure each of the blocks is precise and smooth, resulting in a solid, smooth, and beautiful aluminum multi-color blocking body design.

Gasket Mount Structure and Flex-cut FR4 Plate

Experience superior key sounds and comfort with gasket mount design paired with a flex-cut FR4 plate. FR4 provides a neutral sound profile, offering a bit more stiffness than POM and polycarbonate, yet maintaining a pleasant flex. This combination preserves the flexibility of the gasket structure while enhancing the overall typing sound.

Five Layers of Sound Dampening Material

The KiiBOOM Loop 75 is equipped with five layers of sound-dampening materials: Poron sandwich foam, IXPE switch pad, PET sound-improving film, Poron case foam, and an additional layer of PET film to insulate the battery. These materials significantly enhance acoustic performance, delivering an enjoyable typing experience.

KiiBOOM LOOP75 Sound Test

KiiBOOM LOOP75

$169.99 USD

Product Type

Ready-to-use Keyboard

Number of Keys

82 Keys

Case Material

Full Aluminum Block Structure

Plate

Flex Cut FR4 Plate and Gasket Mounted Structure

PCB

Hot-swappable with Mechanical Switches

RGB

south-facing RGB LEDs

ANTI-GHOSTING

NKRO anti-ghosting.

Connectivity

USB-C, Bluetooth, 2.4G

Software Compatibility

VIA/QMK

Online Software
Type: Linear
Number of Pin: 5-pin
Lubrication: Yes
Top Housing Material: PC
Bottom Housing Material: PC
Stem Material: LY
Diffuser: Yes
Operating Force: 45g
Initial Force: 38g
Bottom-out Force: 50g
Pre-travel: 2.0mm
Total Travel: 3.8mm
Lifespan: 50 million times
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75
KiiBOOM LOOP75

KiiBOOM LOOP75

$169.99
Color

DIY Friendly

The keyboard comes as a complete assembled prebuilt keyboard, but if you want to mod it by your self, feel free to check the video here.
